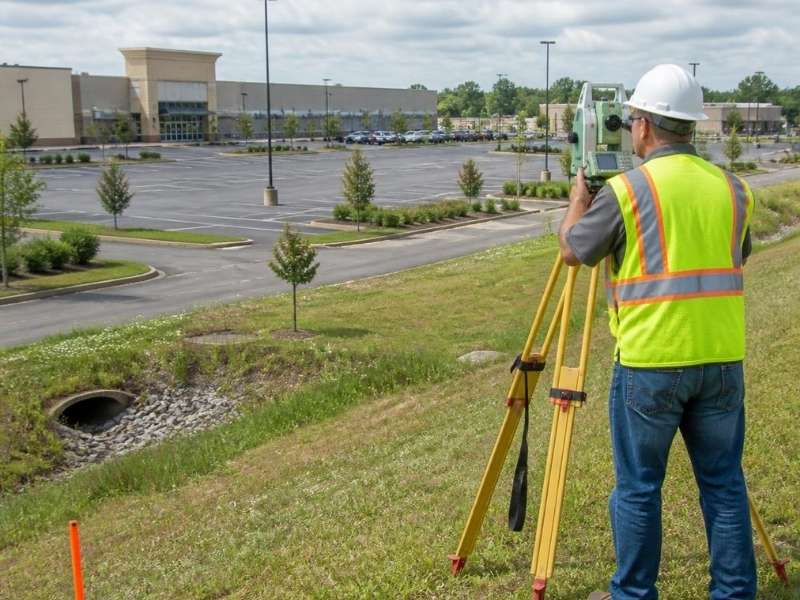

Splitting a big retail parcel into smaller pieces looks straightforward until you realize everything on it was built to work as one site. A boundary survey is needed before dividing large retail parcels because the buildings, parking and utilities cross wherever the new lines will go. What functioned as a single property has to become separate, independently working parcels, each with its own access and its own share of the shared systems. The survey makes that division possible without stranding anyone.
Confirming the Outer Parcel Before Any Internal Line Is Proposed
Division starts from the outside in, so the survey confirms the outer parcel before proposing any internal line. Reliable parent-tract boundaries prevent errors from carrying into every newly created parcel.
The logic is simple but essential. Every new line drawn inside the parcel references the outer boundary, so if that boundary is wrong, every internal division inherits the mistake. Establishing the outer parcel firmly, from the records and the field evidence, gives the division a solid foundation.
This step protects all the resulting parcels. A retail site divided from an uncertain outer boundary produces new lots that are each uncertain. Confirming the parent tract first ensures the internal lines get drawn from a reliable base, so each new parcel stands on solid ground.
Separating Improvements That Currently Operate as One Site
A retail center’s improvements were built to serve the whole site, so the survey documents how they cross the intended division. The buildings, parking, lighting, drainage, signs, utilities and landscaping may all span where the new lines will go.
These shared improvements complicate the split. A parking field designed for the whole center might straddle the proposed line. Lighting, drainage and utilities serving the entire site might cross it. Landscaping and signs might sit where the division falls. The survey maps how each improvement relates to the intended boundaries.
Seeing these crossings guides the division. A line drawn through the middle of a shared drainage system or a parking field creates problems that need solving. The survey reveals where the improvements cross, so the division can be planned to handle them rather than blindly cutting through systems the site depends on.
Preserving Legal Access for Each Resulting Property
Every new parcel needs a way in, so the survey helps preserve legal access for each resulting property. Frontage, drive connections, cross-access rights, fire routes and internal circulation all have to work after the site splits into separate ownership.
Access can’t be taken for granted in a division. A retail site with one entrance shared by everyone has to give each new parcel a legal way to reach the road. Some parcels might front the street directly, while others depend on cross-access rights over neighboring parcels. Fire routes have to keep serving every building.
The survey maps what access exists and what each parcel will need. Internal drives that once served one owner now cross between separate properties, requiring cross-access easements. The survey shows the circulation and frontage, so the division preserves legal access for every resulting parcel rather than landlocking one.
Creating Easements for Systems That Cannot Be Physically Divided
Some systems can’t simply be cut along a property line, so the survey supports creating easements for them. Shared utility, stormwater, parking, maintenance and access rights may need to accompany the new lots.
Physical division isn’t always possible. A stormwater system serving the whole center can’t be split neatly when the parcels divide. A shared utility line, a parking arrangement, or a maintenance responsibility crosses the new boundaries. These systems keep functioning as shared elements, which requires easements to define the rights and obligations.
The survey provides the basis for these easements. By mapping where the shared systems cross the new lines, it shows where easements are needed and what they have to cover. A stormwater easement lets the system keep serving all the parcels. A cross-access easement preserves the circulation. The survey identifies these needs so the division includes the easements that keep the shared systems working.
Coordinating the Boundary Design With Plat and Transaction Documents
A division involves more than lines on the ground, so the survey coordinates the boundary design with the plat and transaction documents. The survey geometry, legal descriptions, easement documents, municipal approvals and purchase agreements all have to stay consistent.
Consistency across documents is critical. The boundary the survey establishes has to match the legal descriptions, which have to match the easement documents and the purchase agreements. If these disagree, the division creates title problems that surface at sale or financing. The survey geometry anchors all of them.
Coordinating early keeps everything aligned. The plat that creates the new parcels, the descriptions that define them, the easements that serve them, and the agreements that sell them all reference the same boundaries. The survey ensures this consistency, so the division produces clean, marketable parcels rather than a set of mismatched documents.
Frequently Asked Questions
Can a retail pad be sold before the new parcel is legally created?
Generally no. Until the division is complete and the new parcel legally exists through the proper platting and approval process, selling the pad as a separate property carries serious risk. The parcel has to be legally created first, with its own boundary and description, before it can be sold. Attempting to sell beforehand can create title and legal problems.
What happens when a shared storm pipe crosses the proposed division?
The pipe needs an easement to keep serving the parcels it crosses after they’re divided. A stormwater system built for the whole site can’t simply be cut at a property line, so the division creates an easement defining the rights to use and maintain the shared pipe. The survey maps the crossing, showing where the easement has to go.
Does every new retail parcel need direct public-road frontage?
Not necessarily direct frontage, but every parcel needs legal access to a public road, which can come through cross-access easements over neighboring parcels. Some parcels might front the road directly, while others rely on shared drives with recorded access rights. The key is that each resulting parcel has assured legal access, whether by frontage or by easement.
