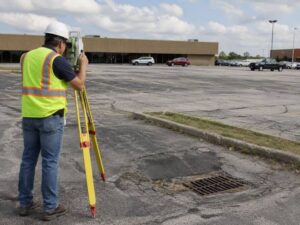

Topographic Survey Before an Older Parking Lot Gets a Complete Redesign
Parking lots wear down over time. They crack, settle, and get patched many times. By the time you plan a full redesign, the surface may no longer match the original drawings. That is why a topographic survey is so important. It maps exactly what exists now. It gives designers reliable elevations and dimensions so the new lot drains properly and functions well.
Years of Repairs Can Alter the Original Parking-Lot Surface
New lots are built to carefully planned slopes and grades. Over decades, cracks form, and crews patch low spots. They add thin layers of asphalt here and there. They may raise some areas to fix puddles while leaving others alone. The result is a surface that varies in height and slope from the original design. If you redesign from old drawings instead of current measurements, you start with wrong information.
A topographic survey measures the actual surface across the entire lot. It captures every rise and dip so designers understand what they are working with. They can see where patches have changed the grade. They can identify areas that have settled over time. This data becomes the baseline for the new design. It ensures the finished lot drains correctly and meets modern standards.
Trace the Existing High and Low Points
Water flows downhill. That simple rule guides every parking lot design. If you do not know where the ground is high and where it is low, you cannot design proper drainage. A topographic survey maps elevations at hundreds of points across the pavement. It creates a clear picture of how water moves across the lot right now.
Designers use this information to place new drains and set slopes. They can decide whether to adjust grades to match existing flow or rework the pattern entirely. They avoid designing a system that fights the natural terrain. They also spot low spots that have collected water for years. These areas get special attention during the redesign so they stop causing problems.
Curbs and Drainage Structures Shape How the Lot Functions
Pavement is only part of the picture. Curbs define traffic flow and guide water toward inlets. Gutters carry water away. Catch basins and pipes move it off the site. Adjacent streets or properties also affect how water leaves the lot. A topographic survey measures all these features. It shows their exact location, size, and elevation.
Items the survey captures include:
- Curb lines, heights, and transitions at driveways and entrances
- Drainage inlets, catch basins, and visible pipe connections
- Sidewalks, ramps, and transitions to public streets
- Adjacent ground elevations where water enters or leaves the lot
When designers see the full picture, they can connect new work to what already exists. They can match curb heights so cars enter smoothly. They can tie new drains into existing pipes without creating flow problems. They can see how water leaves the site so the new design does not push runoff onto neighbors. Every piece works together because the survey captured the full system.
New Accessibility and Circulation Design Needs Accurate Existing Conditions
Modern parking lots must meet strict rules. Accessible parking spaces, clear routes, and safe slopes are required. Traffic lanes, aisle widths, and turning paths also follow standards. Designers cannot guess these measurements. They need accurate distances and elevations from the survey to lay out the new lot correctly.
If you skip the survey, you risk building aisles that are too narrow or slopes that are too steep. You may place accessible spaces where the ground does not meet requirements. You may find too late that curb ramps do not line up properly with the sidewalk. The survey gives designers the facts they need to create a layout that works for everyone and passes inspections.
Survey Before Milling, Demolition, or Reconstruction Removes Evidence
Once crews start tearing up the lot, existing conditions disappear. Curbs get removed. Pavement gets ground away. Drain lines get exposed and may be replaced. If you have not surveyed first, you lose the chance to measure how everything is connected. A topographic survey done before work begins preserves that record forever.
This record helps during construction and long after. Contractors can see where old pipes run before they dig. Designers can compare finished grades against original conditions. If questions arise later about drainage or costs, you have the data to answer them. Doing the survey early preserves information that would otherwise be lost.
