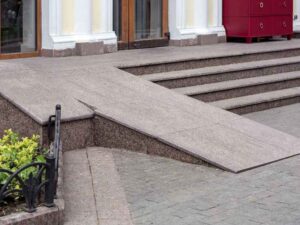

Construction Staking for an ADA Ramp and Site Upgrade
A ramp gets poured a half inch off from the design. The inspector catches it, and the crew is back with jackhammers. Small layout errors on accessible routes get expensive fast.
A construction staking survey helps prevent that. A licensed surveyor sets marked points on the ground that show where the design should be built. For a ramp and site upgrade, those marks show ramp limits, landings, walkways, and target heights. The takeaway is simple. Review the plans first, stake from the approved set, and verify the marks before anything is poured.
Reviewing ADA Ramp Plans Before Construction Staking Begins
Before the crew heads to the field, the surveyor reviews the approved plans to see what needs to be staked and what numbers the design gives. This review catches missing or conflicting information while it is still cheap to fix.
Send the latest approved set, not an early draft. Include the site plan, grading plan, and any detail sheets for the ramp. If the plans and the site do not agree, the surveyor will raise it with the design team.
Many older shopping centers, offices, churches, schools, and apartment sites. Owners often upgrade these properties one entrance at a time. Existing walks, curbs, and doors may not match the drawings, especially if the plans came from old records.
Ask whether a current topographic survey exists for the area. If not, the designer may need one before final plans are set.
Accessibility rules can vary by project type, owner, and reviewing agency. The design team decides which standards apply. Confirm that early, before anyone stakes a layout.
Staking Ramp Limits, Landings, and Connecting Walkways
Staking a ramp means marking where it starts, where it ends, and where each flat area sits. A landing is a level area at the top, bottom, or turn of a ramp. It gives people room to stop, turn, or open a door.
The surveyor also marks the walkways that connect the ramp to parking, sidewalks, and entrances. An accessible route only works if every piece connects.
Common points to stake include:
- Ramp start and end points
- Landing corners
- Edges of connecting walks
- Curb ramp locations
- Door and entrance tie-in points
Stakes are often set as offsets. That means the marks sit a known distance away from the true corner. Excavators tend to knock out stakes placed right on the corner, so the crew measures from the offset stake to find the exact spot.
Tight entrances need extra care. A few inches can decide whether a landing fits between a door and a wall or a light pole.
Transferring Design Elevations and Slopes Into the Field
A construction staking survey turns numbers on paper into heights and slopes on the ground. This is the step where accessible design lives or dies.
Slope is how steep the ground is, usually shown as a percent. Accessibility standards set limits on slope, and the engineer or architect confirms which limits apply to your project. Tight limits leave little room for error.
The surveyor sets grade stakes and gives the contractor a cut sheet. A cut sheet lists how much soil to remove or add at each stake to reach the design height. The heights come from a benchmark, which is a known elevation point tied to the project.
North Texas clay soils can move with moisture. A subgrade that is prepared well for one week may change after heavy rain. Ask your contractor to check the stakes again if the ground is reworked or disturbed.
If a field condition forces a change, do not adjust on the fly. Contact the engineer, get the revised design, and ask for a restake.
Coordinating ADA Layout With Curbs, Pavement, and Entrances
The ramp does not sit alone. It has to meet curbs, pavement, and building entrances at the right heights.
Door thresholds often fix the top elevation. Existing pavement and curb lines fix the bottom. The design must fit between them, and the staking must match. If the numbers do not line up, the designer needs to know before concrete is ordered.
Look for things in the way:
- Light poles, signs, and bollards
- Meters, cleanouts, and manholes
- Drain inlets and low spots
- Trees and roots
- Parking stall striping and drive lanes
Drainage deserves attention. A new ramp or walk can change how water moves across a lot. Water pooling at the bottom of a ramp is a safety problem and a maintenance problem. Stormwater and drainage requirements can vary by site, so confirm them with the City of Mesquite early.
If the work reaches a public sidewalk or street, the city may have its own rules and review steps. Check what applies before layout.
Call Texas 811 before any digging. Stakes do not show buried lines, and utility owners need to mark theirs first.
Verifying Staked Improvements Before Site Construction Proceeds
Once the stakes are set, walk the site with your contractor and compare the marks to the plans. Do this before forms go up or concrete is ordered.
Check the ramp length, landing sizes, and walk widths. Look at how the layout meets doors, curbs, and existing pavement. Ask the surveyor to explain any stake you do not understand.
Protect the stakes. Equipment moves them easily, and a bumped stake can lead to a wrong measurement. If stakes are disturbed, ask for a restake before work continues.
After construction, an as-built survey can record where the finished work ended up. Some owners, lenders, and reviewers ask for one at closeout. Requirements vary by project and agency.
Confirm Survey Needs Early
Permit offices, owners, engineers, and contractors may each need different survey work. Requirements can vary by property type, lender, municipality, county, and project scope. If your permit, inspection, or construction start depends on staking, confirm what you need before you order. Weather and scheduling can affect timing.
Frequently Asked Questions
What is a construction staking survey?
A construction staking survey is the process of marking planned features on the ground from approved plans. A licensed surveyor sets stakes for corners, lines, and elevations. Builders use them to place ramps, walks, curbs, and other improvements.
Who orders construction staking for an ADA ramp?
Usually the owner, developer, or contractor orders it, depending on the contract. The engineer or architect should share the approved plans. Clear coordination keeps everyone working from the same information.
Does construction staking replace a boundary survey?
No. Staking places new work from the design. A boundary survey finds and marks property lines. If a ramp or walk sits near a lot line or easement, a boundary survey may also be needed.
